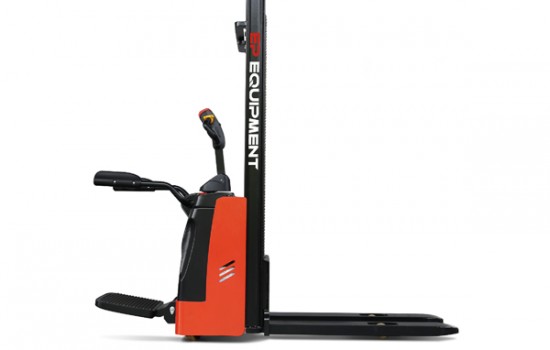

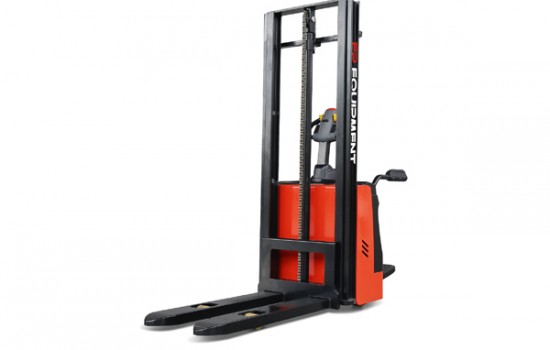

The EP RSB141 1.4 Ton Rider Full Electric Stacker is a reliable full electric stacker designed for efficient pallet handling in warehouses, logistics facilities, and manufacturing plants.The RSB141 is an AGM-powered electric stacker driven by a 48V BLDC (brushless direct current) motor. The BLDC drive motor is durable and literally free of maintenance since there are no carbon brushes to replace. Riding on a stand-on pedestal, the RSB141 is comfortable and easy to maneuver.
Built for smooth operation and enhanced productivity, this electric stacker provides excellent manoeuvrability, stable load handling, and dependable performance for daily material handling tasks.

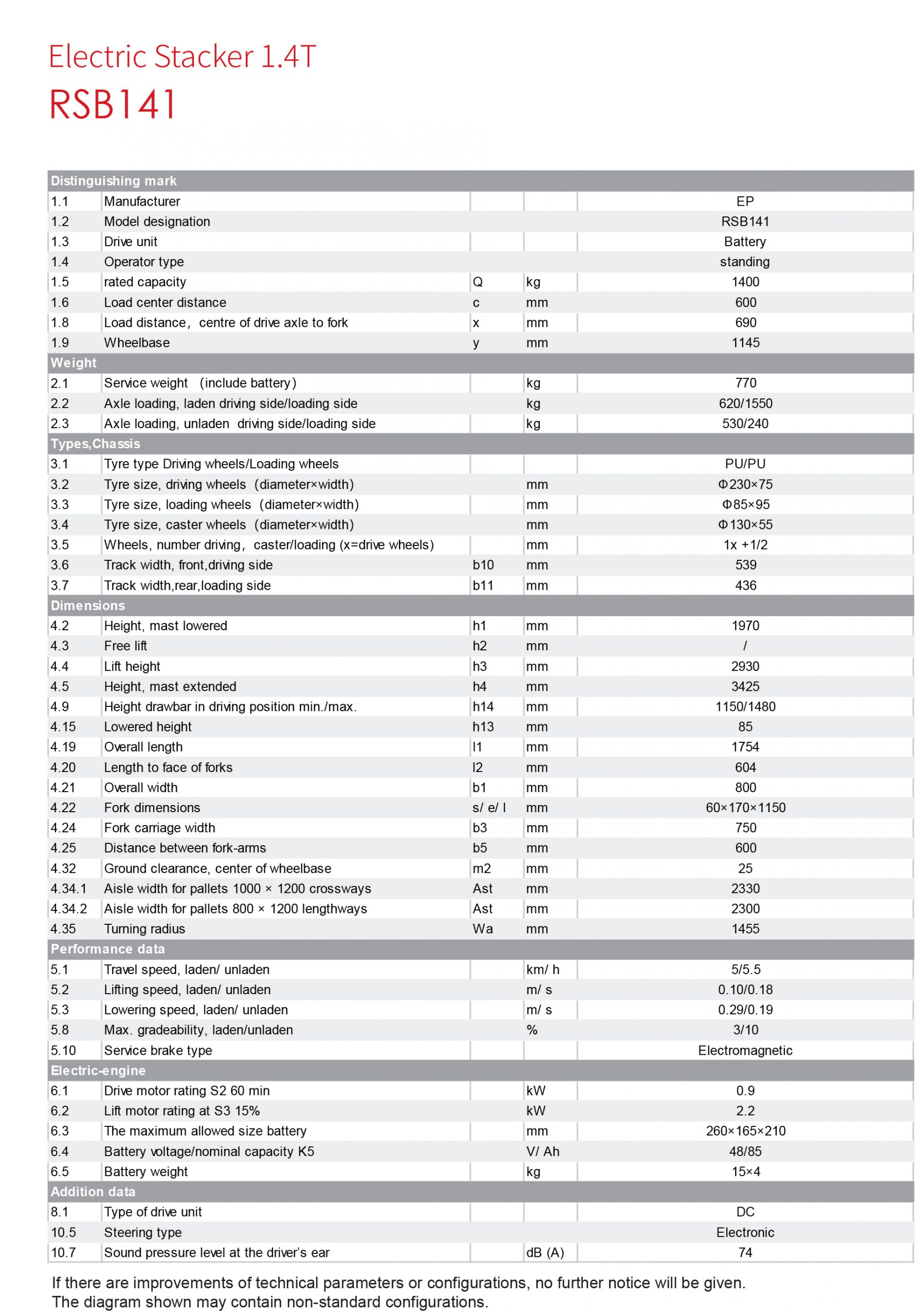

Wheels, number driving, caster/loading (x=drive wheels)
1x + 1/2
3.6
Track width, front, driving side
b10
mm
539
3.7
Track width, rear, loading side
b11
mm
436
Dimensions
4.2
Height, mast lowered
h1
mm
1970
4.3
Free lift
h2
mm
/
4.4
Lift height
h3
mm
2930
4.5
Height, mast extended
h4
mm
3425
4.9
Height of drawbar in driving position min./max.
h14
mm
1150/1480
4.15
Lowered height
h13
mm
85
4.19
Overall length
l1
mm
1754
4.20
Length to face of forks
l2
mm
604
4.21
Overall width
b1
mm
800
4.22
Fork dimensions
s/e/l
mm
60×170×1150
4.24
Fork carriage width
b3
mm
750
4.25
Distance between fork-arms
b5
mm
600
4.32
Ground clearance, center of wheelbase
m2
mm
25
4.34.1
Aisle width for pallets 1000 × 1200 crossways
Ast
mm
2330
4.34.2
Aisle width for pallets 800 × 1200 lengthways
Ast
mm
2130
4.35
Turning radius
Wa
mm
1455
Performance data
5.1
Travel speed, laden/unladen
km/h
5/5.5
5.2
Lifting speed, laden/unladen
m/s
0.10/0.18
5.3
Lowering speed, laden/unladen
m/s
0.29/0.19
5.8
Max. gradeability, laden/unladen
%
3/10
5.10
Service brake type
Electromagnetic
Electric-engine
6.1
Drive motor rating S2 60 min
kW
0.9
6.2
Lift motor rating at S3 15%
kW
2.2
6.3
The maximum allowed size battery
mm
260×165×210
6.4
Battery voltage/nominal capacity K5
V/Ah
48/85
6.5
Battery weight
kg
15×4
Addition data
8.1
Type of drive unit
DC
10.5
Steering type
Electronic
10.7
Sound pressure level at the driver’s ear
dB(A)
74
Ideal Applications
The EP RSB141 powered stacker is suitable for a wide range of material handling applications, including:
Warehouses
Distribution Centres
Manufacturing Plants
Logistics Facilities
Retail Storage Areas
It is ideal for transporting, stacking, and retrieving palletised goods while improving warehouse productivity and operational efficiency.

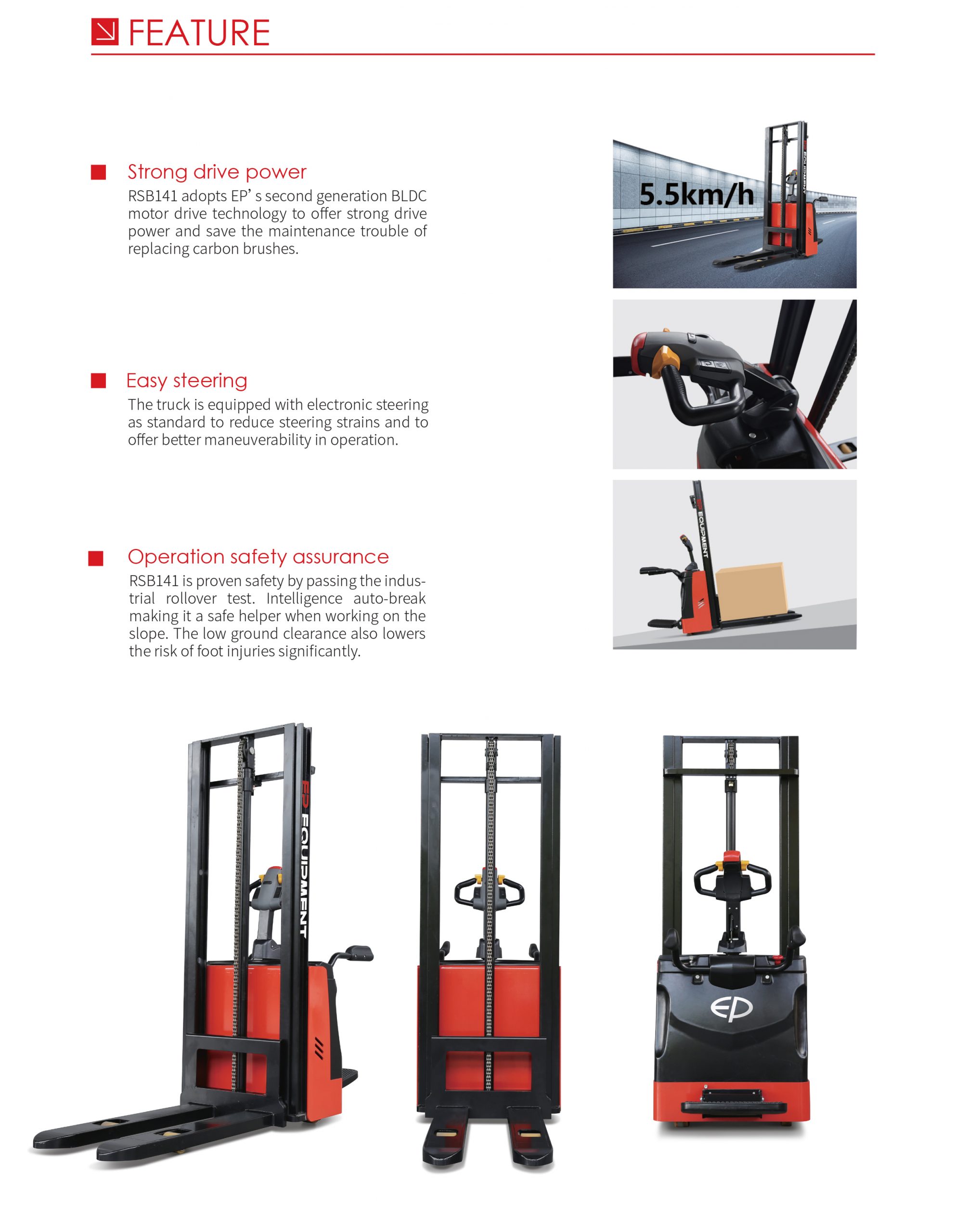

Key Features

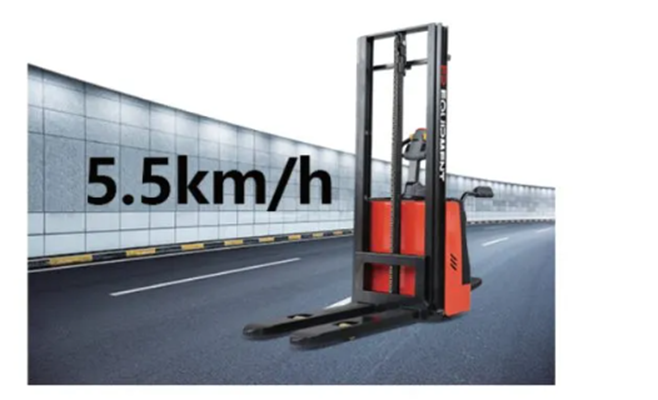

Strong drive power
RSB141 adopts EP’s second generation BLDC motor drive technology to offer strong drive power and save the maintenance trouble of replacing carbon brushes.
1.4 Ton Rated Load Capacity
With a rated load capacity of up to 1.4 tonnes, the RSB141 is designed to handle everyday palletised loads efficiently, supporting material handling tasks across warehouse and storage environments.

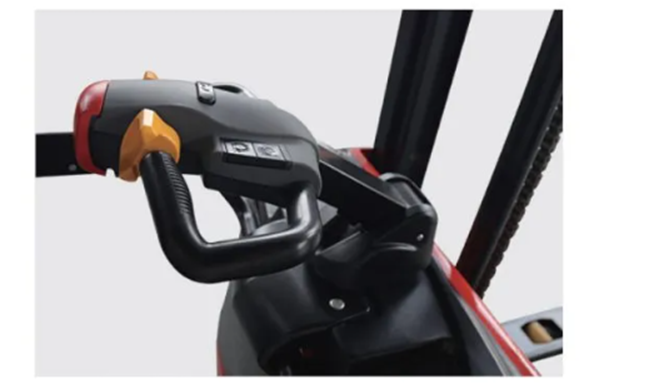

Easy steering
The truck is equipped with electronic steering as standard to reduce steering strains and to offer better maneuverability in operation.

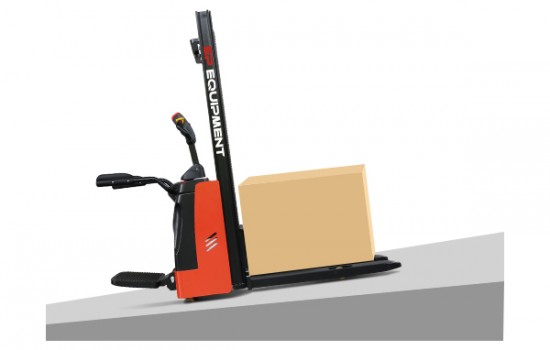

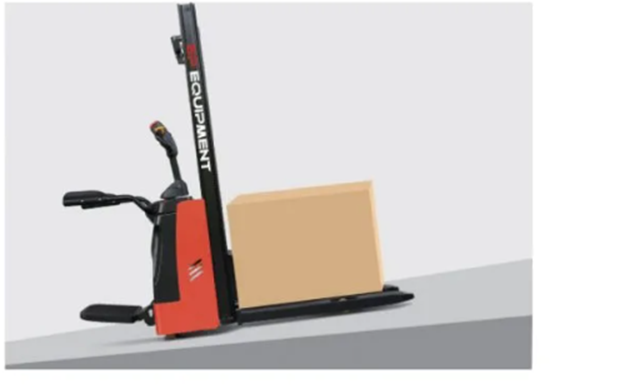

Operation safety assurance
RSB141 is proven safe by passing the industrial rollover test. Intelligence auto-break makes it a safe helper when working on the slope. The low ground clearance also lowers the risk of foot injuries significantly.
Rider Platform for Increased Productivity
The integrated rider platform allows operators to travel with the truck over longer distances, helping improve efficiency when moving loads across larger facilities.
Compact Design for Easy Manoeuvrability
Its compact structure allows the RSB141 to navigate confined warehouse spaces and aisles more easily, making it suitable for operations where space is limited.
Ergonomic Operator Controls
The operator controls are positioned for convenient access, helping reduce unnecessary strain and supporting comfortable operation throughout daily handling tasks.
Suitable for Indoor Warehouse Operations
Powered by an electric battery system, the RSB141 is suited for indoor environments such as warehouses, distribution centres, and storage facilities.
Need Assistance Choosing the Right Electric Stacker?
Not sure if the EP RSB141 is the right solution for your operation? Our team can help you choose the most suitable full electric stacker based on your load capacity, warehouse layout, and operational requirements.
The EP RSB141 has a rated lifting capacity of 1.4 tons (1,400 kg), making it suitable for a variety of warehouse and material handling applications.
Where can this full electric stacker be used?
This full electric stacker is ideal for warehouses, logistics facilities, manufacturing plants, distribution centres, and other indoor material handling environments.
What are the advantages of a powered stacker?
A powered stacker improves pallet handling efficiency, reduces manual effort, provides smoother load movement, and helps increase warehouse productivity while maintaining safe operations.
Do you provide product consultation and after-sales support?
Yes. Tysen Technologies provides expert product recommendations, delivery, and after-sales support to help customers select and maintain the right material handling equipment for their business.
