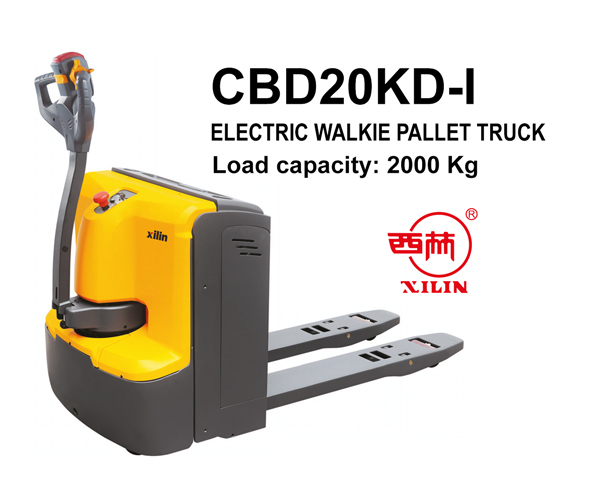

The super light Electric Walkie Pallet Truck CBD20KD-I (2000kg) with small turning radius and low-profile chassis, widely used in Narrow Space like small supermarket and workshop.
SAFETY AND PRODUCTIVITY:
- Advanced AC control system eliminating the motor brushes and directional contactors, which makes the minimal maintenance requirements. Intelligentised regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
- Side-way battery with roll-out system is very convenient to replace batteries.
- Emergency reversing device.
- Built-in pressure relief valve protects the trucks from overloads.
- Long handle tube gives flexible and labour-saving operation.
- Emergency power disconnects.

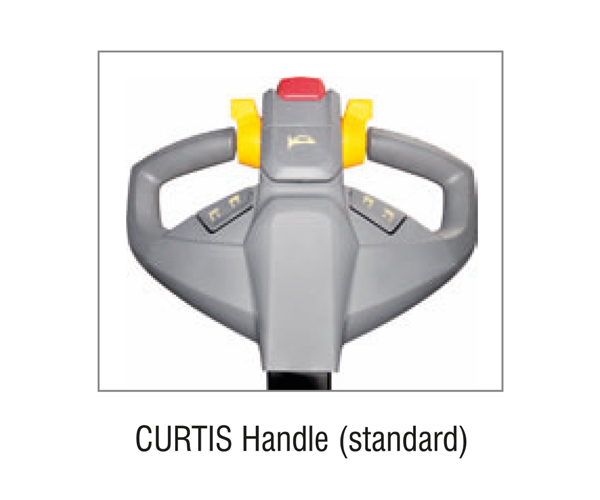

- Low speed switch in the handle.
- Stepless speed control.
STRUCTURAL:

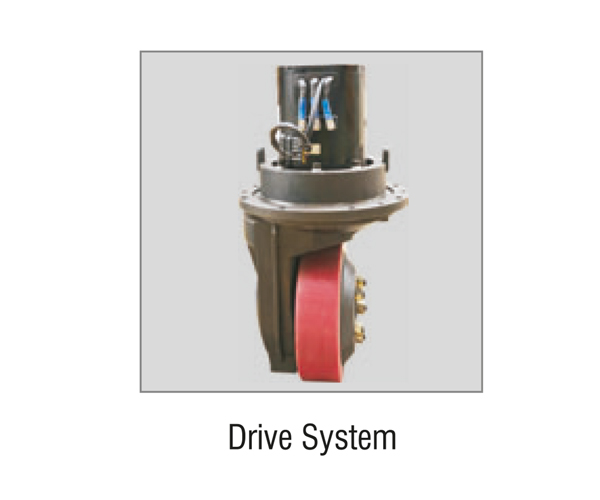

- Vertical driving wheel offers small turning radius. The structure is water-proof and dust-proof.
- The riser axle located at the highest point of forks, which protect riser axles from constant contact from uneven floors. Pull rod design protect the rod from bending.
- Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life.
- One-piece heavy gauge steel is formed for maximum strength forks.
SERVICEABILITY:
- Low battery protection setting prolongs the battery use time.
- CANbus technology reduces wiring complexity and increases reliability.
- All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
