Vertical Carousel by ILMAG

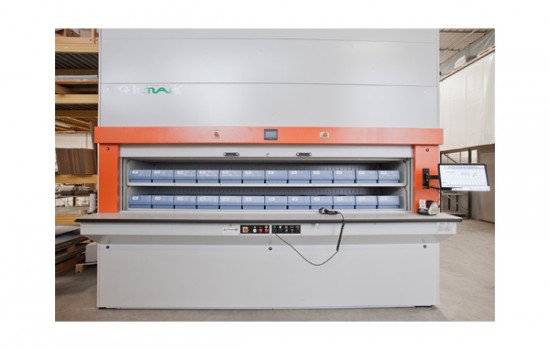

The R-MAG carousel system is a vertical space optimizing “shelving” cabinet. Driven by a motor with PLC control, the vertical chain-conveyor system rotates and delivers the commanded carrier to an easily accessible height. The carousel can be integrated with a host WMS system to manage parts storage locations and inventories.

SKU: ILMAG.RMAG Category:
Add to quote
Machine height between: 3 and 11 meters
Standard machine width: 2728 – 3178 – 3364 mm
Standard depth of the rotating table: 415 – 515 – 615 mm
Rotating carrier capacity: 130 – 300 – 500 kg UD

Main Features:

  • PLC control (programmable logic controller)
  • Vector inverter with STO safety function
  • Frontal safety barrier over the whole working height
  • Electronic components available on the market
  • Automatic chain tensioning system

Optionals:

  • motorized front shutter
  • access control with password
  • fire extinguishing system
  • LED position indicator bar
