| Brand | |
| Nominal Load Capacity (1) | 3000kg (Full Closed Position @ 755mm from Pivot) |
| Nominal Load Capacity (2) | 640kg (Full Extended Position @ 3500mm from Pivot) |
| Total Length | 2108mm (Collapsed) / 3500mm (Extended) |
| Fork Section | 160mm x 80mm |
Mechanical Handling Equipment

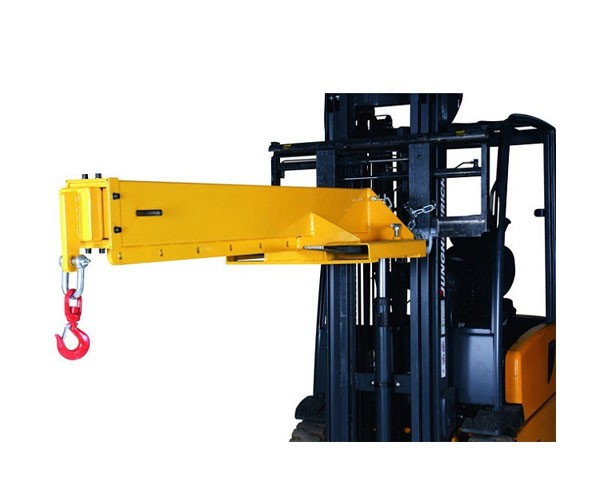

TLB6430 Telescopic Fork Mounted Jib
Simply attach it to the forks of a forklift, this telescopic jib extends the reach for loads beyond the forklift or crane. Comes with fork lock and chain-catch to secure the jib to the truck. PE certification upon request.
Main Features:
-
Converts a forklift truck into a mobile hoisting crane
-
Equipped with a fork lock and a safety catch to secure the jib to the forks
-
Fork socket internal dimensions 180x60mm
-
Total length collapsed 2108 mm
-
Total length fully extended 3500 mm
-
Total width 460 mm
-
Total height 324 mm
-
Weight 160 kg
